METALMASTER PB 135B
Features
Title | METALMASTER PB 135B |
Type | Engineering - Fabrication |
Sub Type | Press Brakes |
Make | METALMASTER |
Model | PB 135B |
Sale Price | $48,345 |
Listing Type | New |
Stock Number | S908 |
RefCode | TA516610 |
Description
HYDRAULIC PRESSBRAKE PB-135B 4000 x 135Ton
"CALL FOR OUR BEST PRICE"
MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities, The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.
MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in affordable price, representing value for money and quicker return on investment.
Featuring an adjustable synchronised torsion bar with positive stop system ensures consistent and accurate bending beam parallelism tolerance to 0.01mm via the digital Control unit.
All electrical components are off European quality supplied by, Telemecanique, Merlin Gerin and ABB. Hydraulic control units are supplied by Aron from Italy.
Features
Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by Ezy-Set NC-89 Go-To Programmable digital controller assuring accurate repeatability.
Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
Ezy-Set NC-89 Go-To Programmable leadscrew back gauge with adjustable height finger stops.
Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style quick release punch holder with an adjustable wedge clamping system for crowning. Intermediate clamp has safety key to stop punch dropping.
Multi vee ('V') bottom die is made from one 4000mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a T slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. Metal master specially design gates to suit Australian safety requirements.
Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction. The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
Note: Price does not include safety light curtain guarding
Standard Accessories:
Swivel pendant control unit operated by Ezy-Set NC-89 Go-To controller X & Y Axis.
Sliding front sheet support arms.
Emergency stop buttons conveniently located on control panel and foot control.
Mobile dual operation foot control.
Segmented 86° offset top punch.

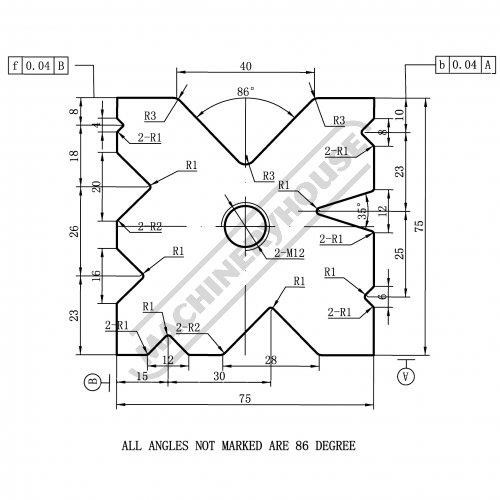

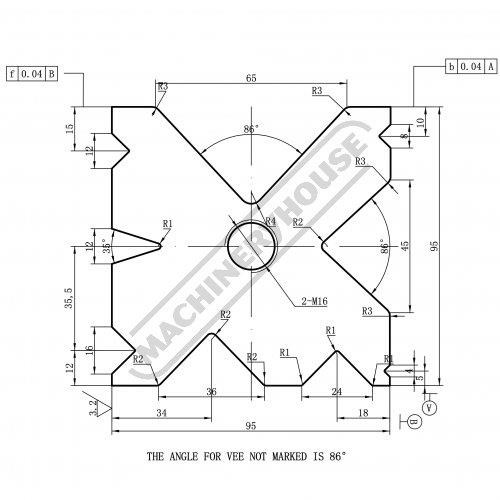

Solid one piece four way multi vee (''v") die block.
Quick action top punch tool holder system with wedge type adjustment.
Powered operated leadscrew back gauge with 600mm travel, operated by Ezy-Set NC-89 Go-To controller.
Oil tank level indicator.
Metal constructed safety guarding surrounding machine with clear side viewing panels.
Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
Specifications:
CODE:S908
2-AXIS NC CONTROLLER:Ezy-Set NC-89 Go-To
MODEL:PB-135B
NOMINAL PRESSURE:135 Ton
KILONEWTON:1250kN
LENGTH OF WORK TABLE:4000mm
DISTANCE BETWEEN COLUMNS:3200mm
MAXIMUM OPEN HEIGHT:390mm
BACK GAUGE TRAVEL:600mm
THROAT DEPTH:415mm
RAM STROKE:130mm
MOTOR:7.5kW
VOLTAGE:415V
WEIGHT:10,000kg
Price includes Laser Safety Guarding
Prices and specifications listed are subject to change
"CALL FOR OUR BEST PRICE"
