Contact Seller
Features
| Title | METAL MASTER SPB-40125 |
| Type | Engineering - Fabrication |
| Sub Type | Bending Equipment |
| Make | METAL MASTER |
| Model | SPB-40125 |
| Sale Price | $83,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 884068 |
| RefCode | TA1266394 |
Description

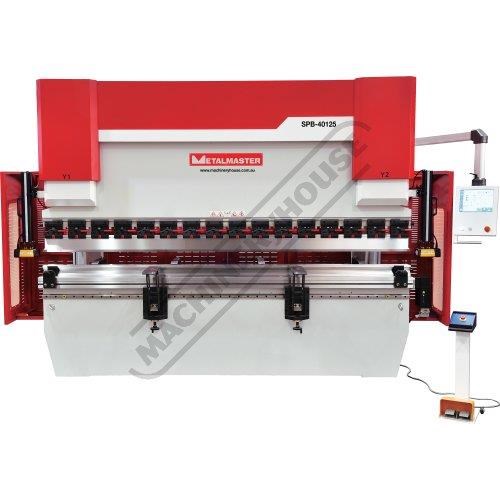

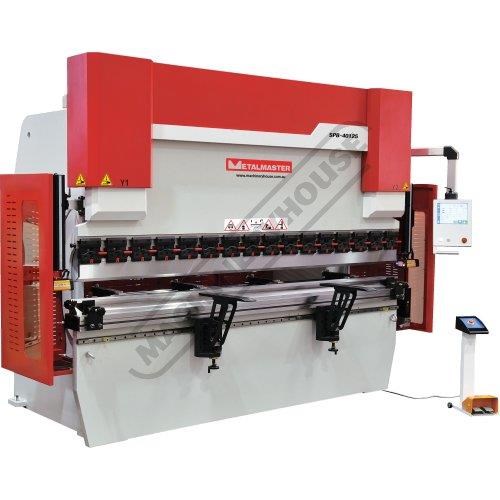

SPB-40125 CNC Synchro Pressbrake 4000 X 125T CYBELEC TOUCH DRAW - 5 AXIS Includes Programmable Y1, Y
METALMASTER SPB-40125 CNC Synchro Pressbrake 4000 X 125T CYBELEC TOUCH DRAW - 5 AXIS Includes Programmable Y1, Y2, X, V & R-Axis & Laser Guarding
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S9715
CYBELEC CybTouch CNC Controller
The CybTouch 12 is specifically developed for synchronised press brakes, Headquartered in Switzerland Cybelec is at the forefront of pressbrake controller technology.
The control features an intuitive interface with an advanced array of bending functions with vivid colour & large touch key interactive touch software. Interactive On-line help, and many other automatic functions that constantly guide the operator. CybTouch controllers are very easy to operate.
METALMASTER Synchro Pressbrake
The Metalmaster Synchro series pressbrakes adopt a heavy duty integral welded steel structure that is furnace tempered post welding to relieve residual stresses and ensure accuracy & longevity of the machine.
The hydraulic cylinders are manufactured from high resistance steel incorporating chromium plated ground & lapped pistons to ensure longevity of the Swedish brand SKF hydraulic seals

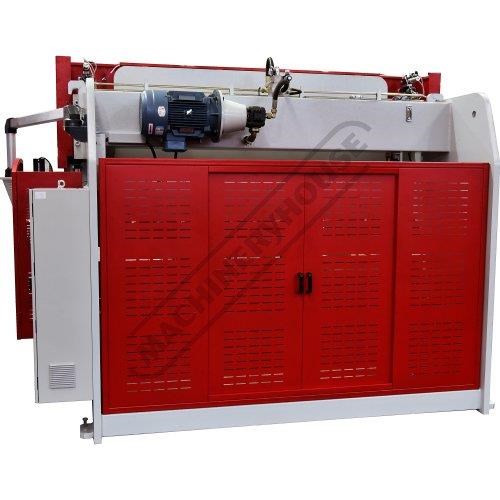

The hydraulics system consists of electronically controlled proportional valves with independent 3 point closed loop safety monitoring of the two cylinders as well as the main hydraulic system.
Italian manufactured DSP Laser Guarding ensures operator safety whilst in operation. The Laser system is designed to cater for many different types and sizes of top tooling ensuring safety at the appropriate points as required by the AUS/NZ standards.
At the heart of the electrical system is the Italian made MCS safety control module which controls & monitors all pressbrake functionality, the MCS provides dual monitoring & closed loop feedback for all critical safety functions such as Hydraulic valves, Emergency stop circuits, doors, guards, foot pedal, DSP lasers to name a few functions. This ensures the machinery to be Compliant with AS/NZS 4024.1 ??? 2019 Safety of Machinery Series
Features:
CYBELEC CybTouch CNC Controller
Large vivid and high-contrast fully touchscreen control mounted on a swivel pendant for optimal ergonomics
Simple pages clear display large keys
Intuitive 2D graphical touch draw part profile programming with auto bend sequencing
Bend material allowance calculation
Radius bump bending calculation function
Angle pressure and crowning calculation & management
bending angle and back gauge correction
Various automatic calculations of other bend functions
Complete programming for efficient mass production with multiple bends
Bending sequences and programs can be saved for future use
Easy single bends with EasyBend page
Easy manual movement
On-line help and interactive warning pop-ups
METALMASTER Synchro Pressbrake
5 CNC Controlled Axis (Y1 Y2 X R V) as standard.
Y1 & Y2 Axis is controlled by advanced safety monitored hydraulic proportional valves ensuring accuracy in movement.
Bending compensation & accuracy is maintained using GIVI (Italy) Linear scales mounted on either end of the machine bed to measure any frame deflection
CNC controlled auto crowning table (V) adjusts accordingly based on material length & thickness specified in program.
Servo driven X & R Axis provides fast response & accuracy when positioning the backgauge.
X-Axis Linear guides & ball screws (Taiwan) / R-Axis rack & pinion
X axis travel 600mm - Speed = 200 mm/s
R axis travel 150mm - Speed = 100 mm/s

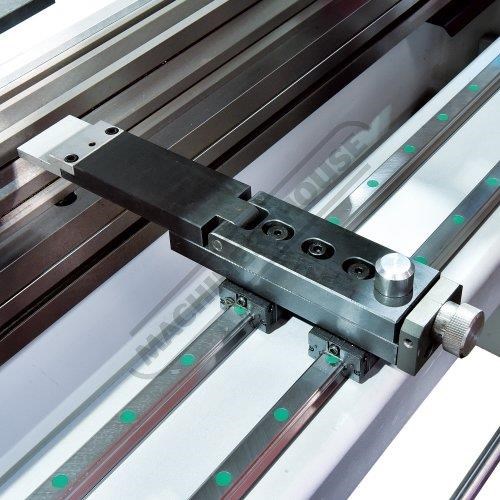

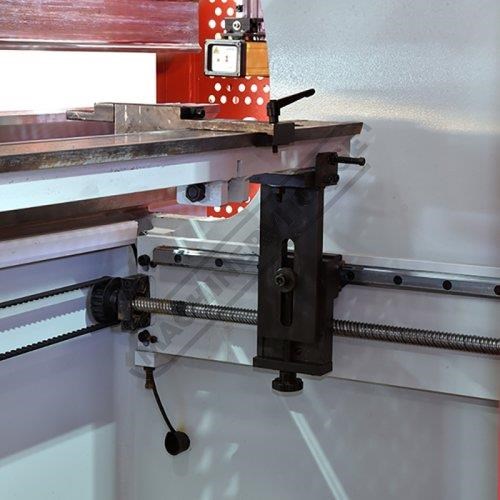

Flip up type back gauge fingers mounted on linear rails complete with micro adjusters are provided as standard
Advanced push button quick release tooling top clamps allow for the top tooling to be removed from the front of the clamp rather than sliding all of the tooling left & or right this saves time and ensures you are not shifting all your tooling just to change 1 piece.
Premium front sheet supports fully adjustable in the vertical direction & mounted on linear rails for ease of use.
Mild steel capacity is rated on hot rolled material with 250MPA
Includes:
- CYBELEC Touch 12 2D Graphical CNC Control
- Touch draw profile programming with Auto bend sequence function
- Easy bend function for quick one off jobs even if you are in the middle of a production bending program
- Quick release top tool clamping system with advanced front load tooling system
- 86 Degree Top Punch with Segments & Horns (4 x 800mm 1 x Segmented 800mm comprising of Left Horn 100 10 15 20 40 50 165 300 Right Horn 100)
- Multi V bottom die block 95 x 95mm with a range of V's between 4mm~65mm
- DSP Safety laser guard system
- MCS safety control for safety compliance & peace of mind
Specifications:
ORDER CODE: S9715
MODEL: SPB-40125
Control Unit (Type): CYBELEC TOUCH 12
Nominal Pressure - Tonnage (Ton): 125
Nominal Pressure - Kilonewtons (kN): 1250
Length of Work Table (mm): 4000
Distance Between Columns (mm): 3355
Throat Depth (mm): 350
Maximum Open Height (mm): 455
Ram Stroke (mm): 200
Machine Axis (No.): 5
Safety Guarding System (Type): Laser System
Ballscrew Backgauge Travel (mm): 600
Leadscrew Backgauge Travel: ~
Table Bed Crowning System (Type): CNC Controlled System
Motor Power (kW / hp): 11 / 15
Motor Voltage (V): 415
Floor Space (Includes Front Sheet supports) (mm): 4560 x 2100
Nett Weight (kg): 7800
To Purchase Online Please Visit The Machineryhouse Website & Search For 'S9715'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
